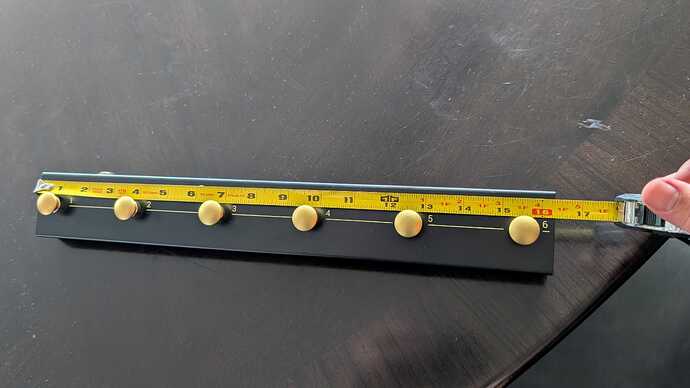

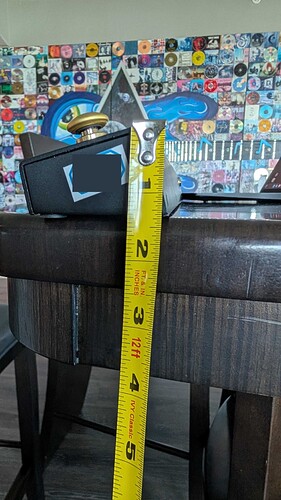

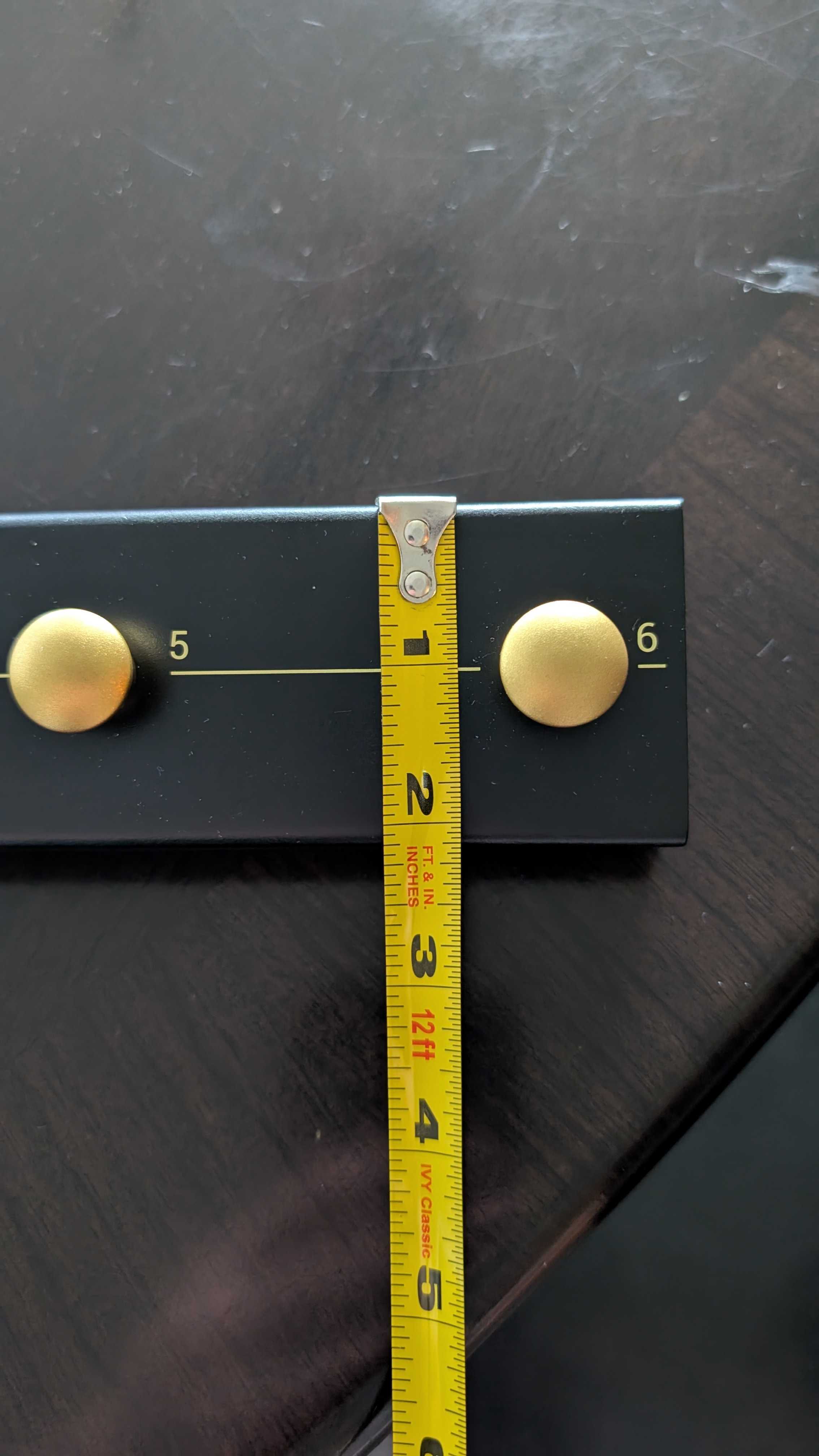

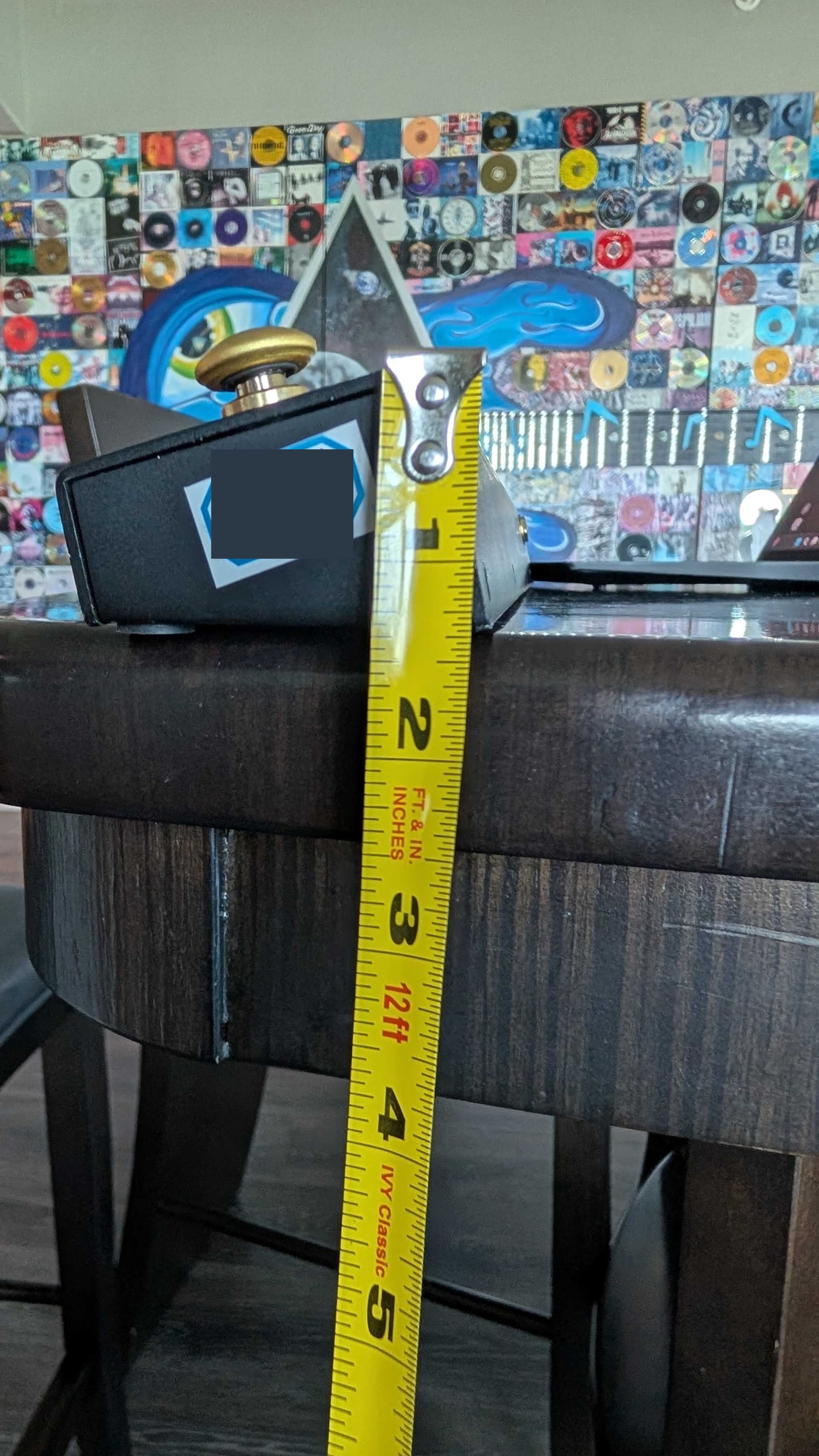

Looking for dimesions for the new superswitch ? trying to plan a pedalboard build with aeros, bb2, superswitch and a quad cortex
1 Like
Wondering the same and where the ins/outs are located.
Thanks I forgot to ask about that part. there is onlya single trs connection from the sound of things and its not on either end but somewhere on the back. Where on the back would be good to know…
1 Like
I would take a guess it’s pretty close to the TC Helicon Switch-6 in size and perhaps the jack is located in a similar location. Scroll down in the link to Tech Specs.
1 Like

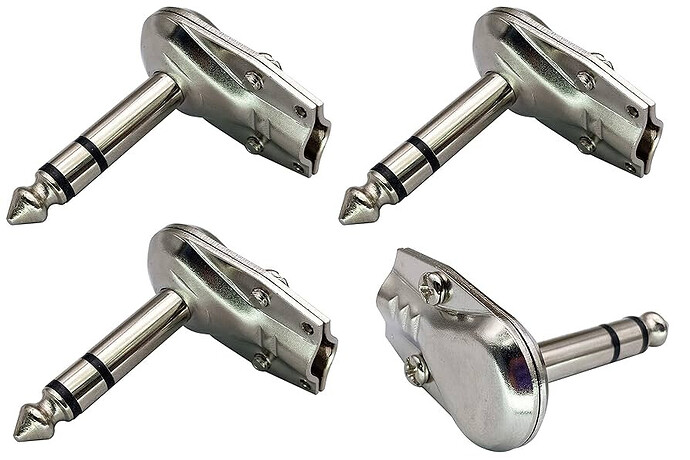

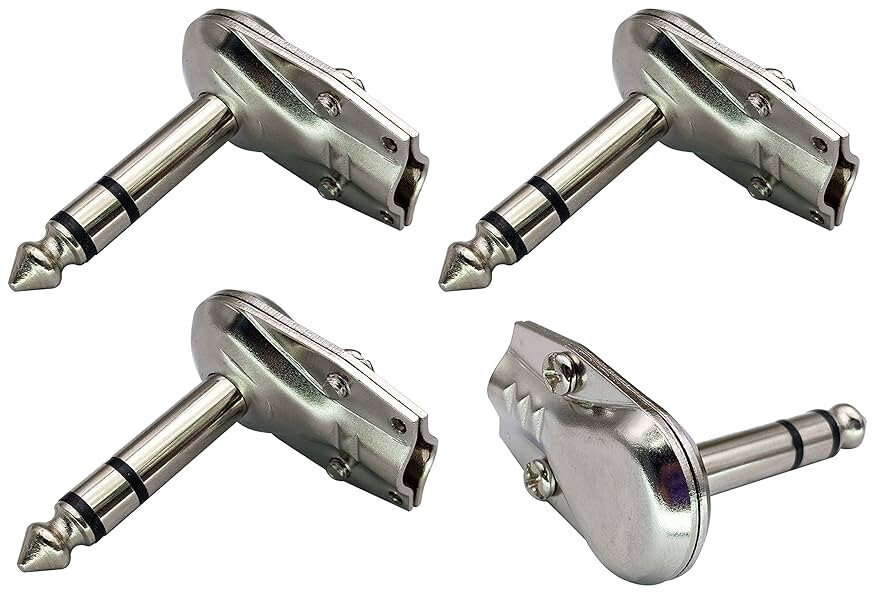

Assuming the Beatbuddy Superswitch uses a 1/4" TRS jack for it’s connection and if you might have some soldering skills, a 1/4" ‘pancake’ TRS plug would allow a low profile to the back of the Superswitch that will take up very little space. I use these on the side jacks of my BB and a few pedals. There may be some commercially made cables with pancake plugs, but since I make my own cables I haven’t really looked for any.
2 Likes
Well a week later and I havent gotten an answer on the dimensions here on the forum. I did notice the trs jack is on the back between button 1 and 2. I caught this in one of the videos.
1 Like
Thanks for the support response. I was about to post here for the benefit of others but I see you alreadcy posted here as well.
1 Like
