Select folders and songs with external midi foot controller

General Discussion
1

Hi everyone,
I’m controlling my BB with a Morningstar midi foot controller, and it works perfectly for : Start, pause, stop, Drum fill, next and previous patterns.

I would like to program it to navigate in folders and songs …

I found CC 96 and CC 97 to increment or decrement … but don’t know if they could be used for folders and songs, and if so, what would be the programming?
Program changes? Control Changes? Values? Sequence?

Thanks

2

Hey there, here is the full MIDI map of the BeatBuddy

3

Thanks Brennan,

I already had most of this information, and have been using it.

What I want to do however is to navigate in folders and songs, the way I can do it with the BB switcher, but using my midi foot controller.

CC-0 and CC-32 are used by OnSong to select a song on the BB.

Is there a command or combination of commands that would allow to scroll the songs and folders, one at a time ?

Thanks!

4

Looks like CC119 will do what you’re looking for

CC Number Value Action Firmware version added
CC-119 [0, 1] 0 scrolls down song/folder list, 1 scrolls up 3.8.0
5

Thank you,!

CC-119 works fine with scrolling songs or folders.

Would there be a CC to move from the songs list to the folder list, as when we do a long press on the BB footswitch ?

6

Eureka, I found it…

CC-118 enters folders.

Thanks

1 Like
7

Hi

Newb here
using the external foot switch with BB stopped.
Could you walk me through the following.
using the bluetooth app
CTRL 1 dual foot switch?
switch mode?
CC ?
would be chuffed with any help
Thanks

8

@Rmoi Hello there.

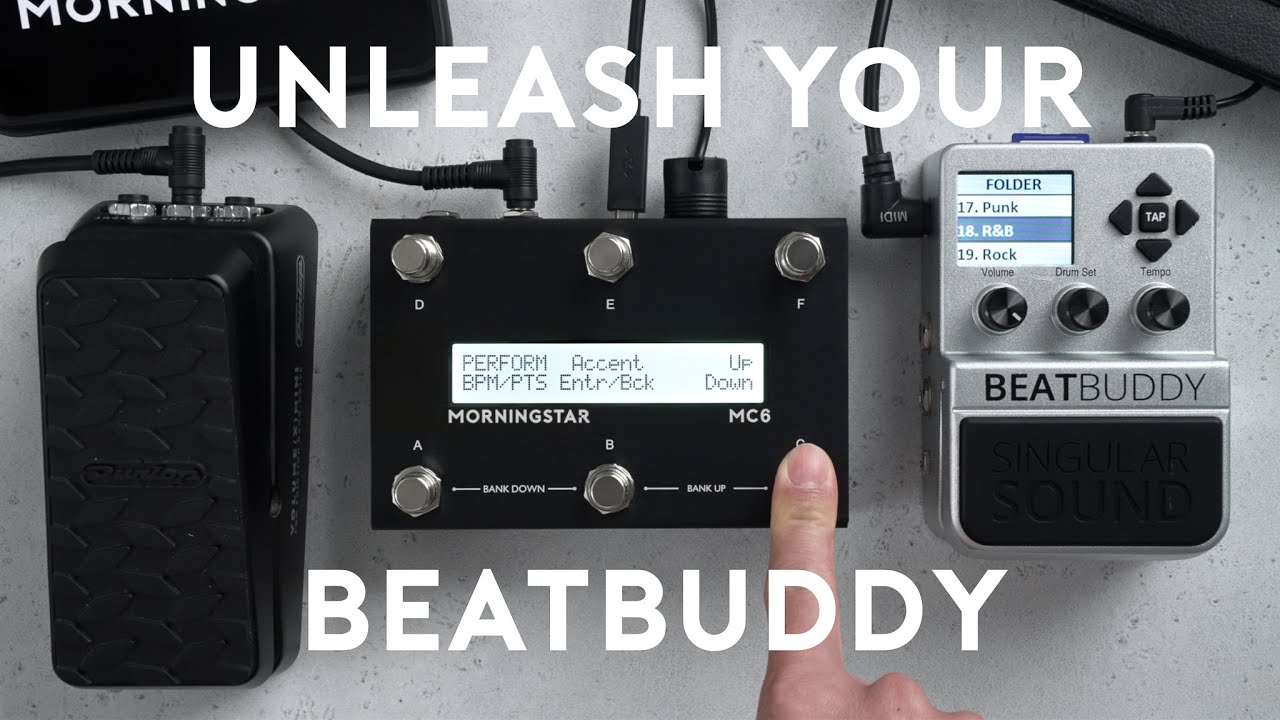

Morningstar made a very nice video (upon my request) about controlling the BB with any of their controllers. You can watch it here:

Cheers.
