Share HX Stomp custom modes?

Midi Maestro Help, Questions and Bugs
1

This topic is a place to share custom modes for HX Stomp, or at least mention them if we’re not supposed to post them on the forum. I’m a noob here and haven’t browsed the custom modes. You might wonder why…well I balked at signing with Google (or Faceplant) bc privacy and evil corporations :wink:

Cheers and Happy Holidays to all,

3

Good luck trying to get that information on here I’ve been trying for months???with not one answer!

1 Like
4

Have you tried the Line 6 forum?

5

This is a lot of commands for HX Stomp :

  • Select a patch Change Pc data: 0 is preset 1, 1 is preset 2 etc…
  • Simulate exp pedal 1 : CC 1 Value 127
  • Simulate exp Pedal 2 : CC 2 Value 127
  • Simulate FS1 : CC 49 Value 0
  • Simulate FS2 : CC 50 Value 0
  • Simulate FS3 : CC 51 Value 0
  • Simulate FS4 : CC 52 Value 0
  • Simulate FS5 : CC 53 Value 0
  • Looper recording : CC 60 Value 127
  • Looper Overdub : CC 60 Value 0
  • Looper play : CC 61 Value 127
  • Looper Stop : CC 61 Value 0
  • Looper play once : CC 62 Value 127
  • Looper undo/redo : CC 63 Value 127
  • Looper forward : CC 65 Value 0
  • Looper Reverse : CC 65 Value 127
  • Looper Half speed : CC 66 Value 127
  • Looper Full Speed : CC 66 Value 0
  • Tap Tempo : CC 64 Value 127
  • Tuner On/Off Toggle :CC 68 Value 0
  • Select a snapshot : CC 69 Value 0 for snapshot 1, Value 1 for snapshot 2 etc…
  • Previous snapshot : CC 69 Value 9
  • Next snapshot :CC 69 Value 8
  • Unit bypass : CC 70 Value 0
  • Unit On : CC70 Value 127
  • Set unit Footswitch mode to Stomp Mode :CC 71 Value 0
  • Set unit Footswitch mode to scroll mode :CC 71 Value 1
  • Set unit Footswitch mode to preset mode : CC 71 Value 2
  • Set unit Footswitch mode to snapshot mode : CC 71 Value 3
  • Previous footswitch mode CC 71 Value 5
  • Next footswitch mode: CC 71 Value 4

This is to affect a preset change on a midi controller IF HXSTOMP have setlist

Command 1 : Midi CC Channel (yours) CC 32 Value 3 for setlist 4 (always 1 back)
Command 2 : PC Channel (yours) PC 23 for preset 24 (always 1 back, but not sure for the PC change you need to test)
Combine this with any Midi cc For the looper
Take care about the Press and Release depend what you want

Hope this can help

6

Thanks. Newbie at this. Can you come over and show me? LOL Looked on Line 6 forum nada! Any links to How To would be appreciated.
Thx

7

Just put the command that you need into the Maestro (or other)
I cannot show you because I don’t have a HXstomp and I sell My helix

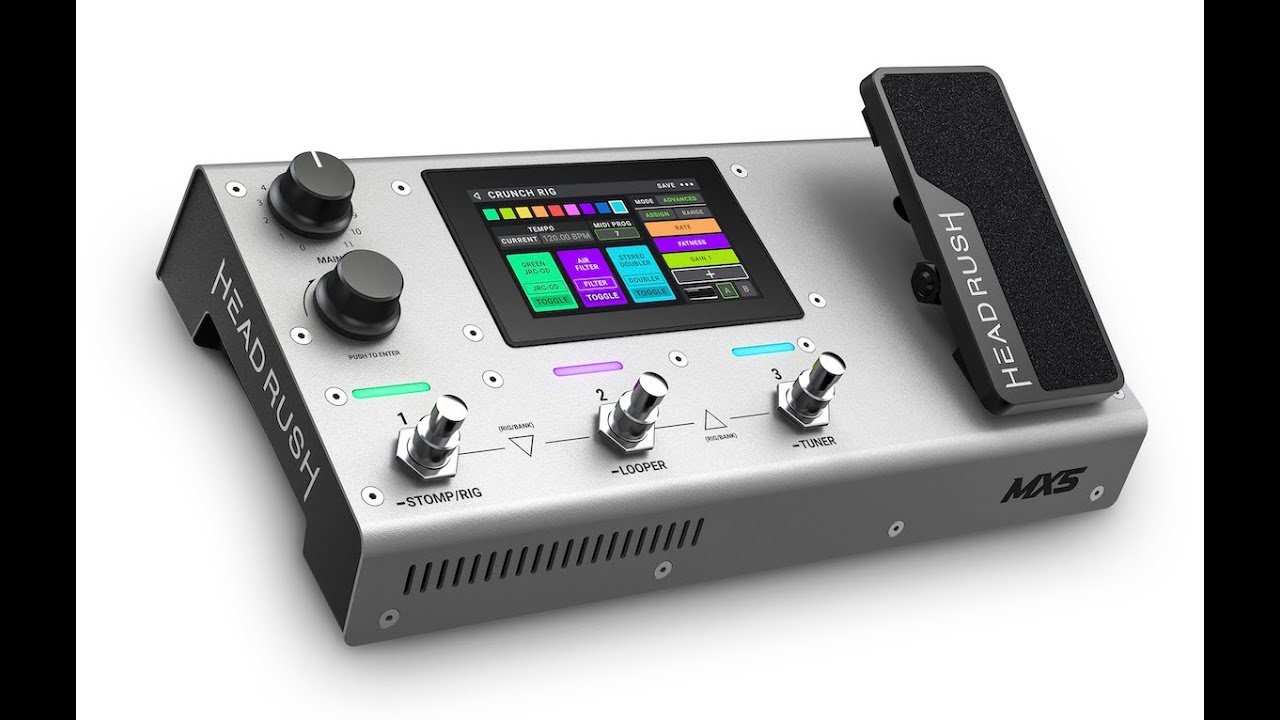

I’m on Headrush now
Here is an exemple how to set the comand for bank up & down on One switch (for Headrush)

You need to proceed in this way with the commands above for HX stomp
